VERSATILE SCREW-IN HEATING ELEMENTS.

HELIOS-screw-in heating elements without control systems are ideally suited to the direct heating of liquid media such as water, oil, chemicals and gaseous media.
Dependent on your order, you will receive from us screw-in heating elements with tubular heating elements made of stainless steel, which we will adapt to the respective application situation and the medium that is to be heated.

The surface load, a decisive design feature for a long service life of the screw-in heating element, will be selected for your special intended purpose. An additional cooling zone is required at temperatures above 120 °C.

We will be glad to advise you.

SCREW-IN HEATING ELEMENTS ARE MANUFACTURED IN ACCORDANCE WITH YOUR SPECIFICATION WITH INDIVIDUAL IMMERSION LENGTH, VOLTAGE AND POWER. INDIVIDUAL. VERSATILE. SOPHISTICATED.

TECHNICAL DATA:

Design:

Nipple can be supplied in different sizes and materials.
Material of the tubular heating element dependent on intended application.
Hood with different protection systems.

Voltage:

Up to 690 volts.

Power:

Up to 12,000 watts.

Materials of the screw-in heating element:

Mat. no. 1.0108 Steel
Mat. no. 1.4541: Stainless steel, max. temp. 750 °C AISI 321
Mat. no. 1.4571: Stainless steel, corrosion-resistant AISI 316Ti
Mat. no. 1.4828: Stainless steel, max. temp. 850 °C AISI 309
Mat. no. 1.4876: Stainless steel, corrosion and temperature-resistant alloy 800
Mat. no. 2.4858: Special material, high degree of corrosion resistance alloy 825
Mat. no. 3.7035: Titanium, high degree of corrosion resistance

DOWNLOADS:

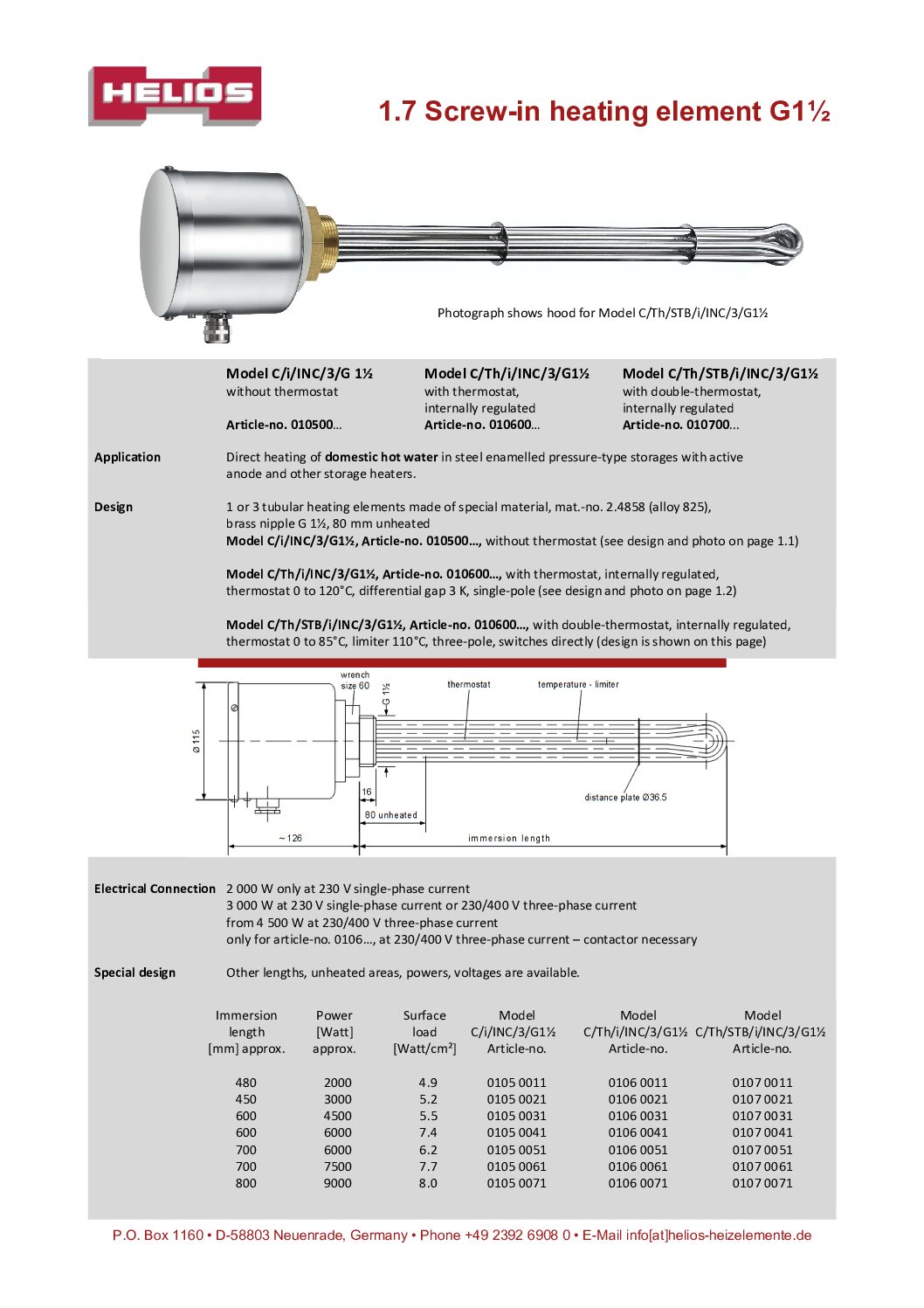

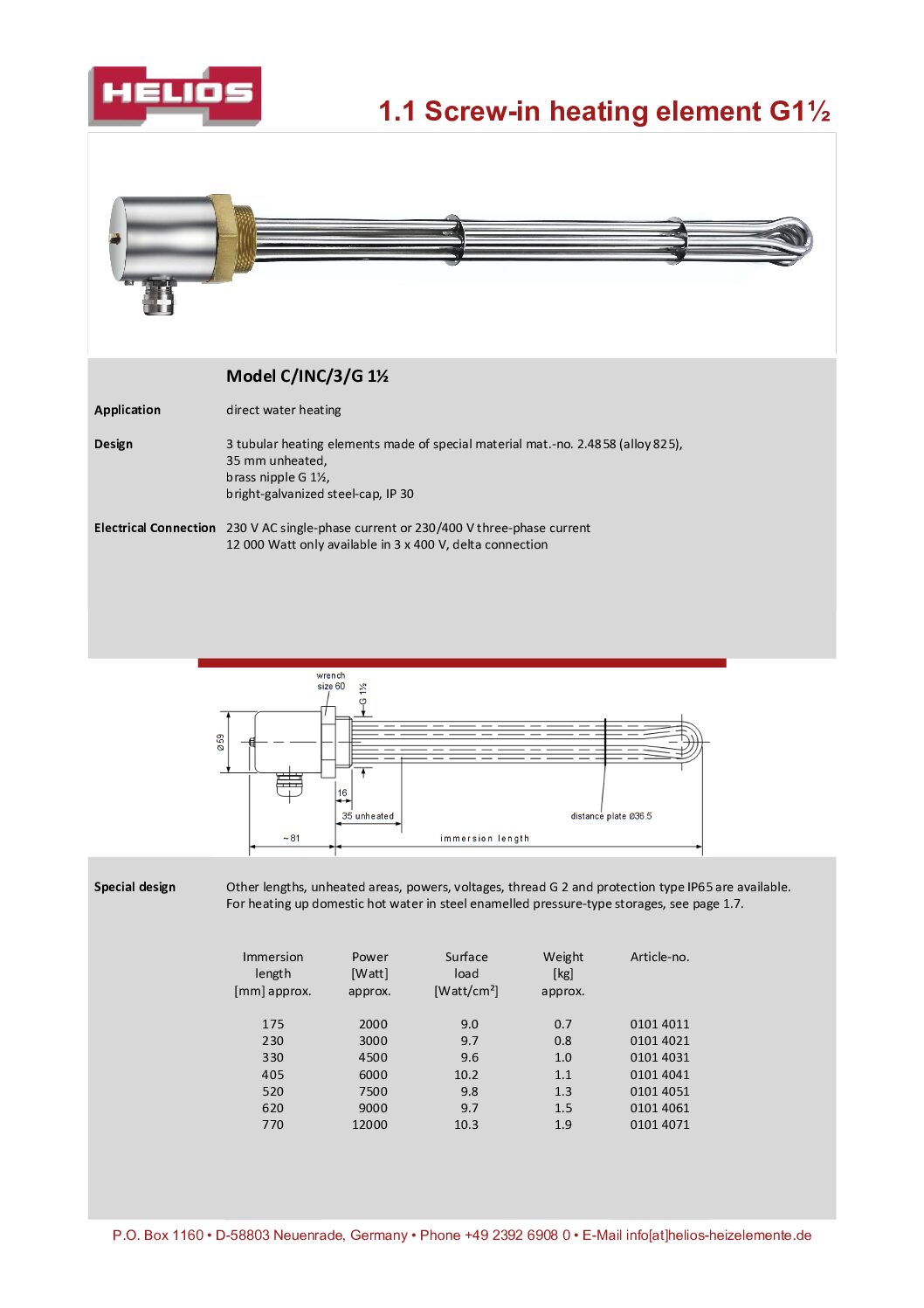

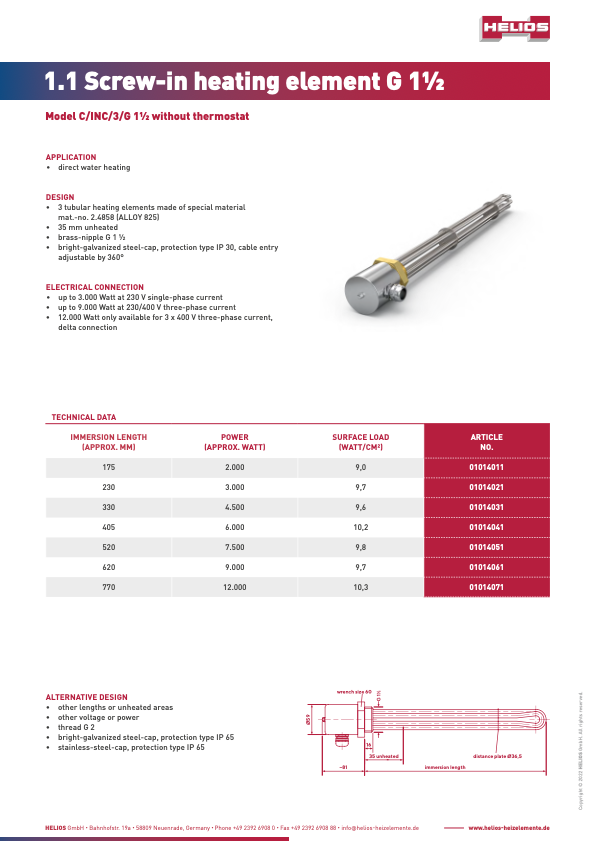

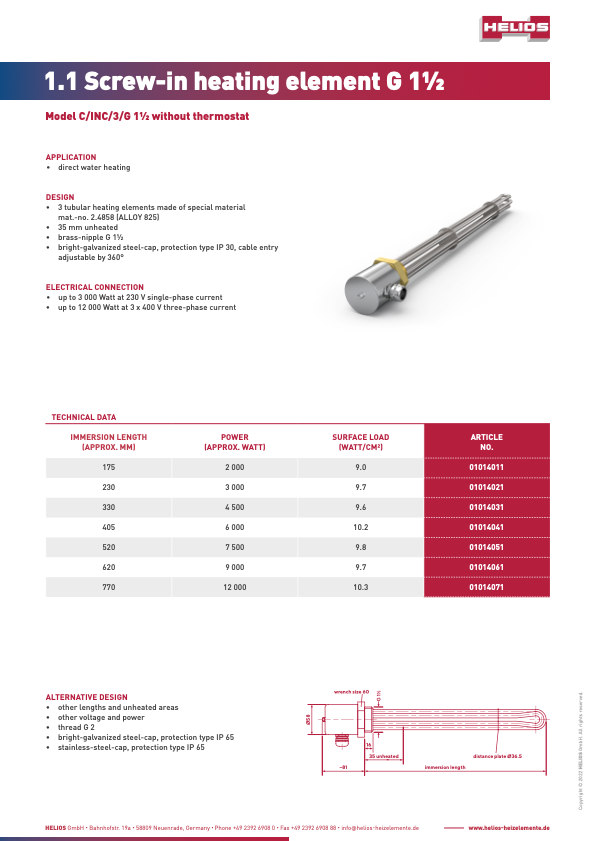

Water heating

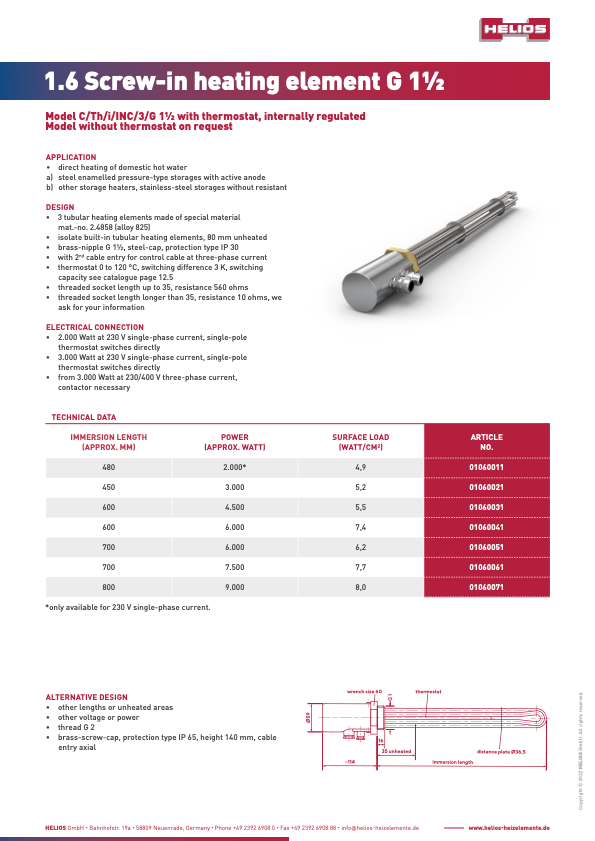

Process water heating

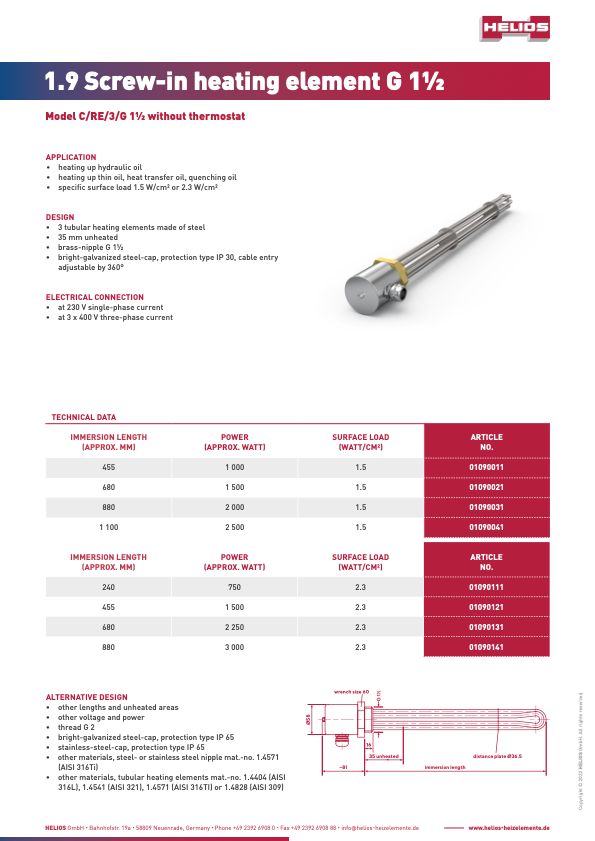

OIL HEATING
VARIOUS LIQUIDS

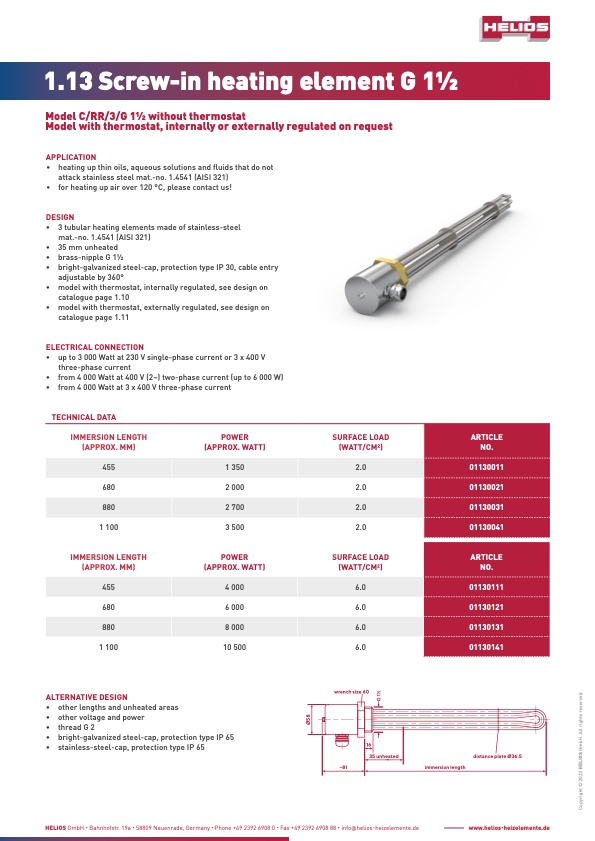

Air heating
