VERSATILE FLANGED HEATING ELEMENTS.

HELIOS-flanged heating elements with control systems are ideally suited to the direct heating of liquid media such as water, oil, chemicals and gaseous media. Dependent on your order, you will receive from us flanged heating elements with tubular heating elements made of stainless steel, which we will adapt to the respective application situation and the medium that is to be heated.

The surface load, a decisive design feature for a long service life of the flanged heating element, will be selected for your special intended purpose. For precise temperature monitoring, the flanged heating elements can be supplied with different controllers and/or limiters as well as measurement sensors or sheathed thermocouples. An additional cooling zone is required at temperatures above 120 °C.

We will be glad to advise you.

WE WILL BE GLAD TO ADVISE YOU. FLANGED HEATING ELEMENTS ARE MANUFACTURED IN ACCORDANCE WITH YOUR SPECIFICATION WITH INDIVIDUAL IMMERSION LENGTH, VOLTAGE AND POWER. INDIVIDUAL. VERSATILE. SOPHISTICATED.

TECHNICAL DATA:

Design:

Flange in various materials, up to nominal width DN 500 in accordance with DIN 2527.
Material of the tubular heating element dependent on intended application.
Hood with different protection systems.
Thermostat or limiter in accordance with temperature range.

Voltage:

Up to 690 volts.

Power:

Up to 500,000 watts.

Materials of the flanged heating element:

Mat. no. 1.0108	Steel
Mat. no. 1.4541:	Stainless steel, max. temp. 750 °C	AISI 321
Mat. no. 1.4571:	Stainless steel, corrosion-resistant	AISI 316Ti
Mat. no. 1.4828:	Stainless steel, max. temp. 850 °C	AISI 309
Mat. no. 1.4876:	Stainless steel, corrosion and temperature-resistant	alloy 800
Mat. no. 2.4858:	Special material, high degree of corrosion resistance	alloy 825
Mat. no. 3.7035:	Titanium, high degree of corrosion resistance

DOWNLOADS:

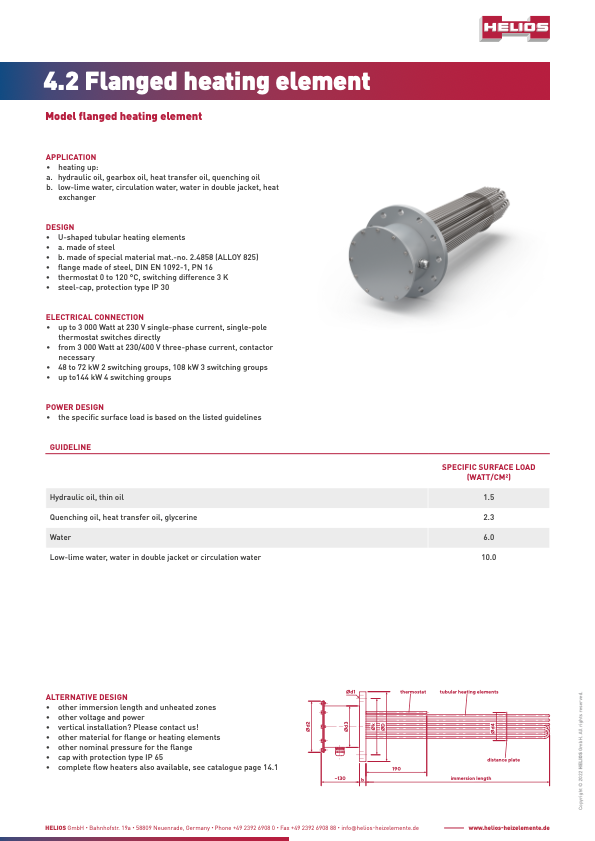

HELIOS_Flanged_heating_elements_product_leaflet_EN_2024 — Flanged heating elements
