VERSATILE CARTRIDGE HEATERS.

HELIOS cartridge heaters with and without control system are ideally suited to the heating of low-viscosity oil, hydraulic oil or heat transfer oil. The replaceable heating insert can be exchanged at any time. The protective tube remains installed in the tank. The medium does not need to be drained.

The surface load, a decisive design feature for a long service life of the cartridge heater, will be selected for your special intended purpose.

We will be glad to advise you.

CARTRIDGE HEATERS ARE MANUFACTURED IN ACCORDANCE WITH YOUR SPECIFICATION WITH INDIVIDUAL IMMERSION LENGTH, VOLTAGE AND POWER. INDIVIDUAL. VERSATILE. SOPHISTICATED.

TECHNICAL DATA:

Design:

Nipple can be supplied in different sizes and materials.
Replaceable, ceramic heating insert.
Tube sheath made of steel or stainless steel AISI 316Ti.
Hood with different protection systems.
Thermostat or limiter in accordance with temperature range.
Horizontal installation; please enquire about vertical installation!

Voltage:

< < 480 volts – version with thermostat
Up to 690 volts – version without thermostat

Power:

Up to 5,000 watts – version with thermostat
Up to 10,000 watts – version without thermostat

DOWNLOADS:

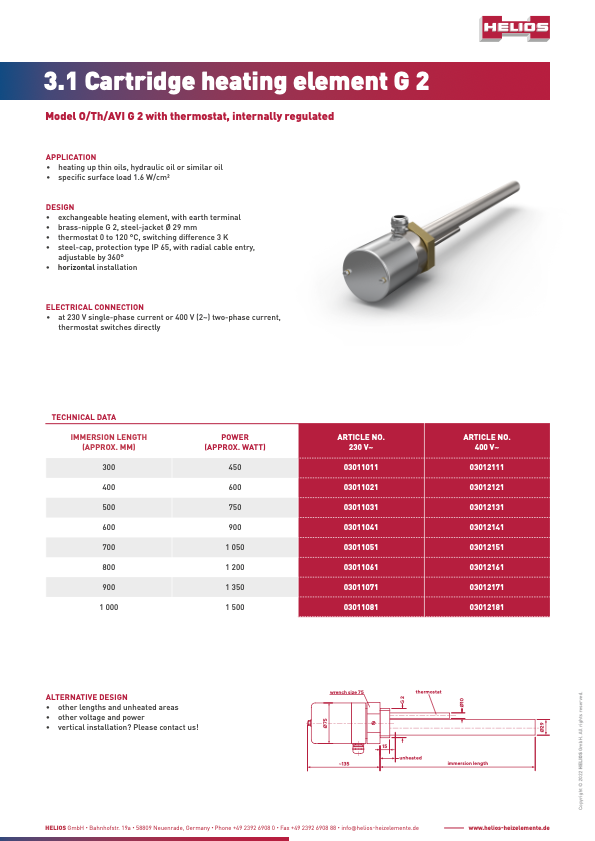

HELIOS_Oil_heating_G2_with_thermostat_product_leaflet_EN_2024 — Oil heating G 2 (with thermostat)

HELIOS_Oil_heating_G_3-4_product_leaflet_EN_2024 — OIL HEATING G ¾

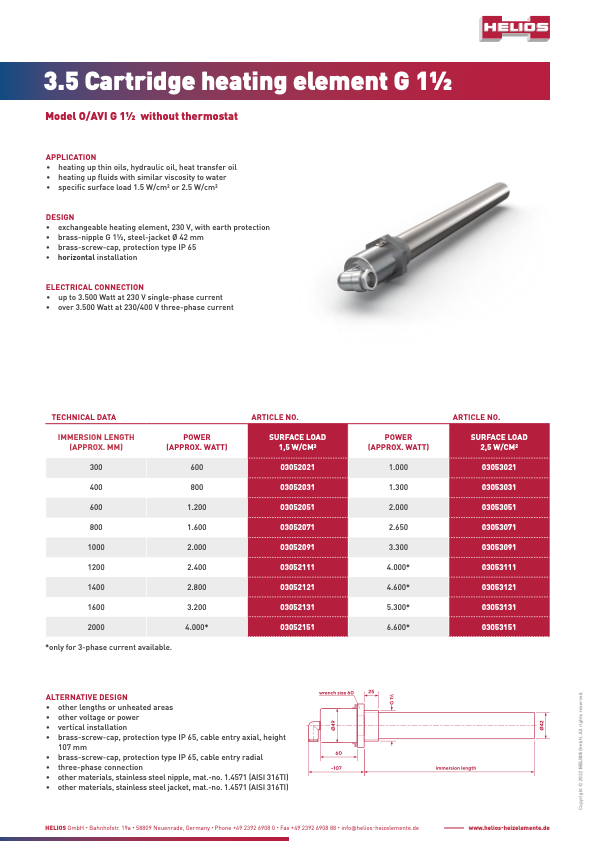

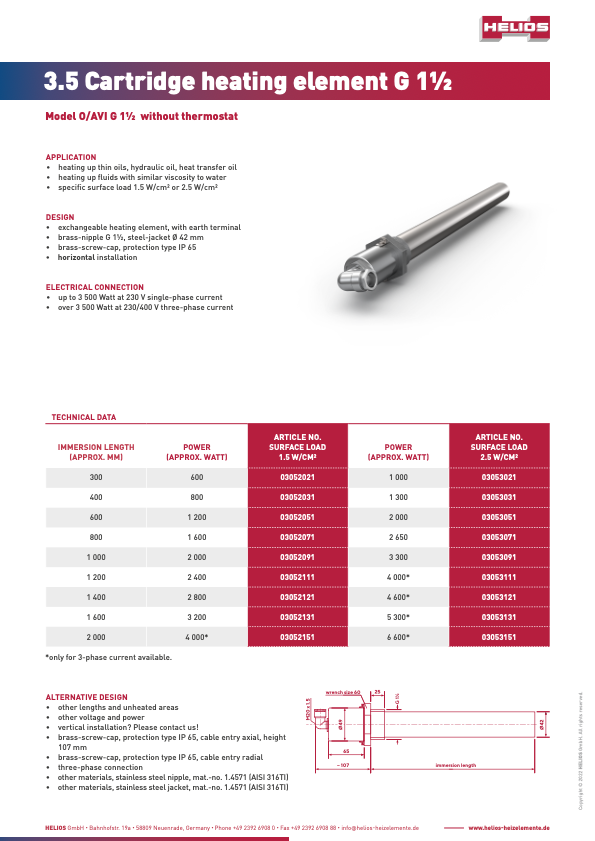

HELIOS_Oil_heating_G1_1-2_product_leaflet_EN_2024 — OIL HEATING G 1 ½

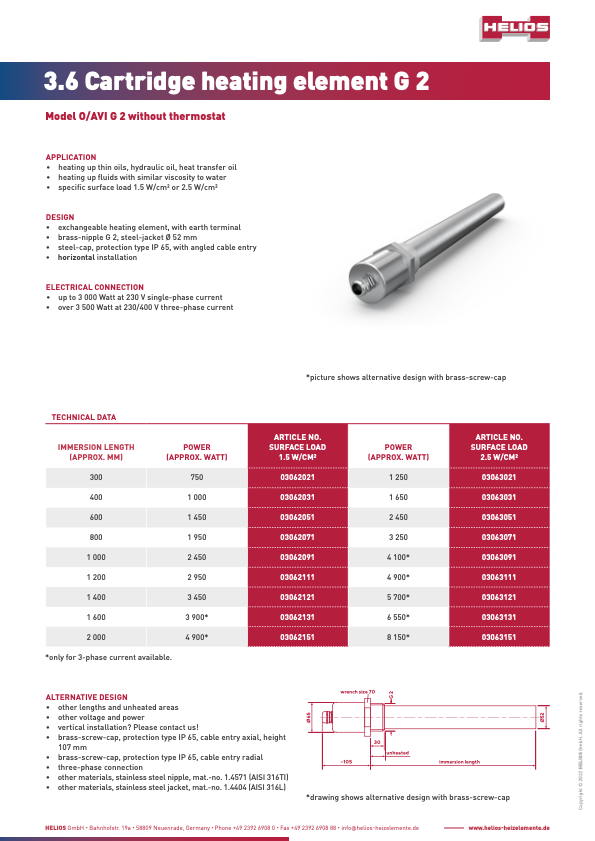

HELIOS_Oil_heating_G2_product_leaflet_EN_2024 — Oil heating G 2

HELIOS_Oil_heating_flange_with_thermostat_product_leaflet_EN_2024-thumbnail — Oil heating flange with thermostat
